Restoring Quarry Tile Floors’ Breathability and Brightness

How do quarry tiles differ from other flooring options?

Understanding the Significance of the Clay Body in Quarry Tiles

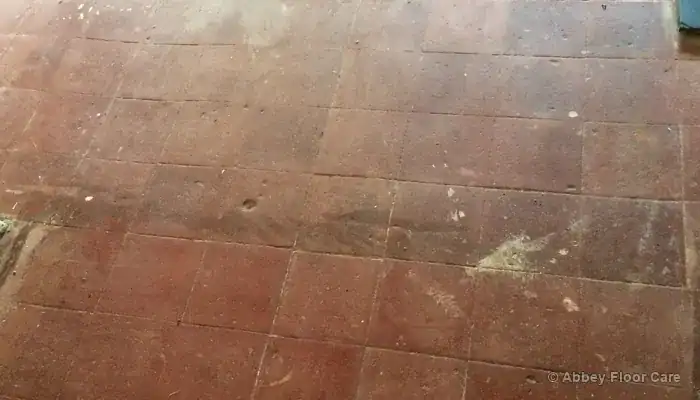

Quarry tiles are constructed from dense, unglazed clay that is subjected to high temperatures during the firing process. This results in a durable moisture-active surface without any protective glaze. Unlike ceramic or porcelain tiles, quarry tiles lack a sealing glaze, which makes the clay body vulnerable to foot traffic, cleaning agents, and moisture from the outset. The continuous cycle of moisture absorption and release is a fundamental aspect of their design.

The clay body consists of fine mineral particles with voids that allow moisture vapour to pass through. This enables water vapour to rise from the subfloor, move through the tile, and evaporate at the surface. In many historic UK homes, quarry tiles are installed directly on lime or compacted earth bases, often without a damp-proof membrane, facilitating continuous and intentional moisture movement. Sealing this pathway disrupts the tile’s natural function rather than protecting it.

The Importance of the Firing Process

The temperature at which quarry tiles are fired significantly affects their final density, colour, and porosity. Tiles fired at lower temperatures produce softer, more porous materials that absorb liquids rapidly, commonly found in older Victorian and Edwardian homes. In contrast, tiles fired at higher temperatures result in denser structures with tighter voids, leading to improved resistance against liquid absorption while remaining unglazed and moisture-active. Both types are fundamentally different from glazed or polished flooring solutions.

This production technique ensures that the colour of quarry tiles is an integral part of their structure, extending throughout the clay body rather than merely coating the surface. the colour cannot be scrubbed away like a painted finish. Over time, the surface texture may change due to wear, causing colour variations as contaminants accumulate within the tile. If your floor consistently appears dark, it is likely hiding ingrained contamination rather than showcasing its original clay colour.

The Drawbacks of Lacking a Glaze

Glazed tiles feature a glass-like coating that repels liquids, resists stains, and simplifies cleaning by preventing dirt from penetrating the surface. Quarry tiles, on the other hand, lack this protective layer, allowing liquids to penetrate directly. Grease, cleaning residues, soil, and water seep into the tile body rather than remaining on the surface. Over time, these substances accumulate beneath the surface, making standard surface cleaning ineffective.

This explains why the typical cleaning method — applying a product, mopping, and rinsing — often yields poor results on quarry tiles. Cleaning agents only target residues on the surface, while deeper layers of contamination persist. A floor cleaned consistently for years can still retain decades worth of ingrained contamination because conventional cleaning solutions do not penetrate deeply enough to eliminate it. Recognising the need for professional deep cleaning is essential for effectively maintaining these floors.

This quarry tile hub provides extensive information on the entire lifecycle of these floors, from quarry tile fundamentals to cleaning, restoration, and sealing guidelines for all conditions.

The Significance of Moisture Vapour Transmission and the Risks of Blocking It

Moisture vapour transmission refers to the ongoing movement of water vapour through the subfloor, tile, and into the living space. In a properly functioning quarry tile floor, this process occurs invisibly and without causing damage. The floor breathes effectively, maintaining stability while salts carried by moisture either evaporate harmlessly at the surface or disperse through the open clay structure.

When moisture transmission is obstructed, often due to a film-forming sealer that blocks the tile’s pores, moisture accumulates beneath the surface. This buildup can lead to blistering, peeling, or discolouration. Salts deposited from trapped moisture create white crystalline deposits known as efflorescence. Additional cleaning efforts cannot resolve this issue; the core problem lies in the blocked breathability, necessitating the removal of the coating to restore the tile’s moisture movement.

Recognising Embedded Contamination and Its Hidden Build-Up

Embedded contamination consists of grease, soil, organic matter, and residues that have permeated the clay body over years of use. Unlike recent spills, this contamination isn’t visible on the surface. Instead, it manifests as overall darkening, persistent dullness, or a floor that never appears clean despite cleaning efforts. Heavily contaminated floors may feel slightly sticky due to old wax and grease residues trapped in the upper layers of the clay body.

This accumulation occurs gradually and often goes unnoticed. Every meal prepared, every muddy shoe, and every application of general cleaning product adds a bit of residue absorbed by the tile. Over a decade or two, this leads to a layer of contamination that cannot be removed by surface cleaning products. Addressing it requires specialised chemistry that penetrates into the clay body, typically through controlled alkaline cleaning with wet vacuum extraction, targeting the contamination directly rather than only treating the surface.

What causes the floor to look dirty after cleaning?

If your quarry tile floor appears dirty after mopping, it is likely that the contamination has infiltrated the clay body itself. This is when traditional cleaning methods cease to yield visible results, and continuing to use the same techniques will not change the outcome. The floor isn’t unresponsive because it’s beyond repair; it’s unresponsive because the cleaning efforts are targeting the wrong layer.

Residue cycling occurs when each cleaning session disturbs surface contamination without actually removing the embedded layer. The floor may look cleaner right after mopping, but it quickly returns to its dull state as the surface dries and the underlying layer re-emerges. This cycle can persist for years without improving the underlying condition. The deep cleaning process for quarry tiles effectively addresses the embedded layer rather than repeatedly treating the surface, leading to immediate and lasting improvements.

What causes variations in the appearance of quarry tiles in different homes?

Repetitive cleaning that yields no visible results does not indicate a failure in technique; it signifies that soil has already penetrated below the surface layer. To diagnose this issue, it is essential to understand why two quarry tile floors in similar conditions can display drastically different appearances. Variations in manufacturing significantly affect both the appearance and performance of the tiles.

Quarry tiles fired at higher temperatures result in denser materials with tighter clay structures. These tiles are slower to absorb liquid, maintain their colour under foot traffic more consistently, and resist surface abrasion better over time. Conversely, tiles fired at lower temperatures tend to have a more open structure, absorb liquids more readily, and show signs of embedded contamination sooner. Both types remain unglazed and moisture-active, but the speed at which problems arise varies considerably.

Why does dirt penetrate the tile instead of staying on the surface?

Capillary action is responsible for drawing grease and soil into a quarry tile rather than allowing them to rest on the surface. The open clay structure facilitates the inward movement of liquid contamination under regular foot traffic. Each step applies pressure that drives liquid residues into the surface voids. Grease from cooking, soil tracked in on shoes, and residues from cleaning products all enter the tile body through this process. Once inside, they become inaccessible to surface cleaning.

Over time, the voids in the upper clay layers become increasingly filled. The tile darkens from within, and residue cycling begins — each cleaning disturbs surface contamination but fails to reach the underlying layers. The floor becomes slower to absorb new contamination as the upper voids fill, but the existing embedded layer does not diminish without targeted intervention.

The practical implication is that cleaning frequency alone cannot compensate for insufficient cleaning depth. A floor cleaned daily with a general-purpose product may still develop a significant embedded contamination layer over five to ten years. The maintenance routine that prevents this issue involves using correctly formulated pH-neutral cleaning solutions, avoiding detergents that leave their own residues, and removing grit before wet mopping to reduce surface abrasion and contamination issues.

Why do common cleaning products become less effective over time?

If your regular floor cleaner was effective for the first year or two but now seems to lack impact, it’s likely that the contamination layer has moved beyond the reach of surface-acting products. General-purpose floor cleaners are designed to address residues at or near the surface and are not formulated to penetrate the porous clay body to lift long-standing contamination. Once contamination is embedded, these products only maintain surface cleanliness without resolving the underlying problems.

Many household cleaners also leave behind their own residues — surfactants, fragrances, and pH-adjusting agents that the tile absorbs alongside the soil they aim to eliminate. This speeds up the residue cycling process and can lead to a surface that feels slightly sticky or appears consistently dull, regardless of recent cleaning. The chemistry needed to penetrate the clay body, rather than just the surface, employs controlled alkaline concentrations, mechanical agitation, and wet extraction — a process that general-purpose products are neither designed nor intended to replicate.

How can the wrong sealer harm your quarry tile floor?

Using a film-forming sealer on a moisture-active quarry tile floor does not provide protection; it traps the moisture that the floor needs to release. Film-forming products create a physical barrier across the tile’s pores. While they may be suitable for modern glazed tiles, this approach is detrimental for unglazed quarry tiles resting on a moisture-active base, leading to sealer failure, efflorescence, and accelerated deterioration.

Sealing a quarry tile floor effectively involves facilitating moisture movement rather than obstructing it.

The progression of breathability failure follows a predictable pattern. Initially, the sealer may appear effective. Within months, moisture vapour accumulating beneath the coating leads to blistering or milky patches. The coating may peel or deteriorate unevenly. Salts from trapped moisture create white crystalline patches on the surface. Homeowners often clean the floor again, frequently applying more product, exacerbating the issue. Throughout this process, the tile remains undamaged; however, restoring proper moisture vapour transmission necessitates professional intervention. An impregnating sealer, which penetrates the tile body instead of resting on top, allows moisture to move while protecting the internal structure from further contamination.

What signs indicate your quarry tile floors are in decline?

White powder on the tile surface, inconsistent finishes that return after cleaning, and coatings that peel without clear explanation are interconnected symptoms of the same underlying issue. Each indicates a specific stage of deterioration, and recognising these signs is crucial for understanding the floor’s condition.

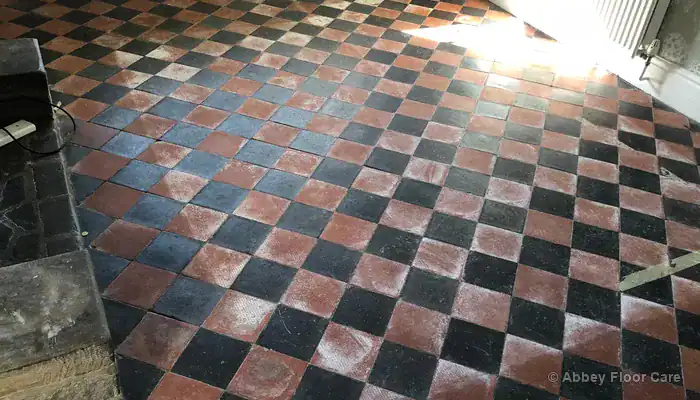

Efflorescence, the white crystalline or powdery deposit that forms when moisture carries dissolved salts to the surface, indicates active moisture movement. This often suggests that something above — whether a surface coating or incompatible sealer — is blocking the evaporation pathway. Homeowners notice a chalky white residue that reappears shortly after cleaning.

Salt migration produces a similar visible effect but occurs deeper within the tile, depositing mineral compounds inside the clay structure rather than on the surface. Over time, this causes the tile surface to appear progressively lighter in affected areas. Sealer failure can be recognised through peeling, mottling, or uneven sheen, signalling areas where the coating has separated from the tile.

What essential maintenance is required for quarry tile floors?

If your quarry tile floor has undergone professional restoration, the subsequent maintenance routine will determine whether it remains in excellent condition or begins to deteriorate within months. The most crucial factor is using a pH-neutral cleaner specifically formulated for breathable natural tiles — avoiding general-purpose products and any cleaners containing bleach, vinegar, or surfactant residues that the tile will absorb. Selecting the wrong product can reactivate the residue cycling process from the outset.

Equally important is removing grit before wet mopping. Hard particles of sand and soil tracked indoors act as fine abrasives underfoot, accelerating surface abrasion in the upper clay layer. Dry sweeping or vacuuming before any wet cleaning helps prevent this. Resealing at appropriate intervals, typically every two to three years for an impregnating sealer depending on foot traffic, maintains internal protection without causing surface residue buildup.

When does maintenance fail to meet the needs of your quarry tile floor?

Persistent darkening that does not improve with proper cleaning products, white salts that return soon after removal, and coatings that repeatedly fail indicate that the floor requires professional evaluation rather than continued maintenance.

Use the following steps to assess your floor’s current state:

1. Clean the floor with a properly formulated pH-neutral product and allow it to dry thoroughly. If the darkening returns within 48 hours and the floor appears unchanged after cleaning, the contamination is embedded beneath the surface.
2. After removing any visible white deposits, check whether they reappear within a week. Rapid reappearance indicates active moisture movement combined with a blocked or partially obstructed evaporation pathway — this signals a sealer failure condition rather than a cleaning issue.
3. Inspect any coatings applied within the last two years. If the coating has begun to peel, mottle, or exhibit an uneven sheen in high-traffic areas, the product was likely incompatible with the floor’s moisture movement profile, necessitating professional removal before further treatment.

What steps should you take based on your floor’s condition?

Every issue with quarry tiles points to a specific part of the restoration system, and the appropriate starting point depends on the current condition of the floor.

If the floor appears dirty after cleaning and the issue persists, begin with the deep cleaning process: deep cleaning quarry tiles to eliminate decades of grime outlines the complete procedure. If the floor shows white deposits, inconsistent finishes, or failing coatings, follow the restoration pathway: quarry tile restoration details the professional remediation process.
