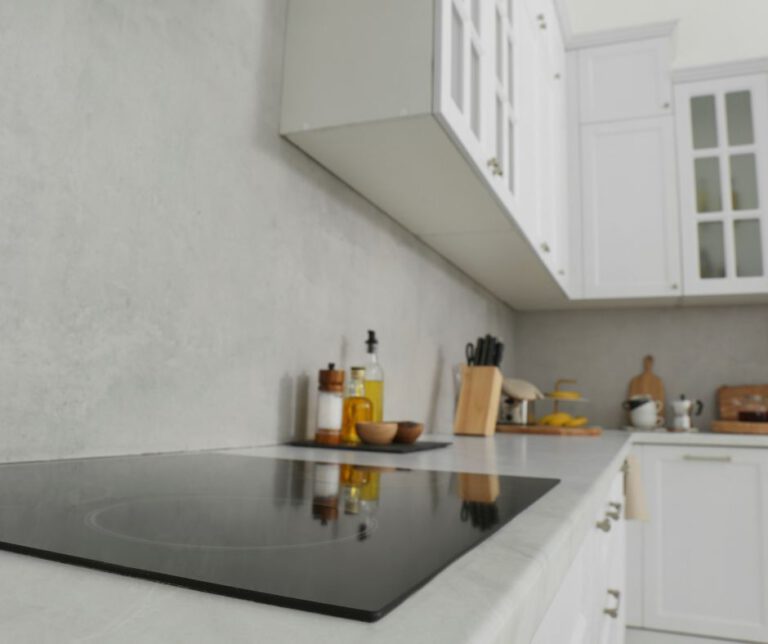

Induction Cooktop Wiring Requirements for Queensland Homes

Key Electrical Requirements for Induction Cooktops in Queensland

Are you considering installing an induction cooktop in your Queensland residence? Before making your selection, it’s crucial to understand the specific electrical needs. Induction cooktops operate differently from traditional electric or gas models, which places added importance on the wiring requirements.

In Queensland, most induction cooktops require a dedicated 230-240V circuit, with many units drawing between 20 and 32 amps. As a result, your current wiring may need to be upgraded to safely accommodate this power demand.

The power requirements for your induction cooktop depend primarily on two factors: the total kilowatt rating of the model you choose and whether your home uses single-phase or three-phase power. Having this information handy before finalising your purchase is essential.

Some premium induction cooktops may necessitate three-phase power, operating at 380-415V AC at 50Hz. This is uncommon in residential settings, so always verify the specifications of your selected model. A licensed electrician can assess your switchboard and wiring to recommend any necessary upgrades prior to installation.

Common Questions About Induction Cooktops Answered

Here are some of the most frequently asked questions we receive, along with clear responses from our certified electricians:

Question	Quick Answer
Is three-phase power necessary for all induction cooktops?	Most homes do not need it. Only high-end or larger cooktops (typically over 7.4kW) may require three-phase power.
What type of wiring is required for an induction cooktop?	A dedicated circuit with either 6mm² or 10mm² cabling, depending on the amperage and length of the cable run.
What is the typical amp draw of an induction cooktop?	Most induction cooktops use between 20-32 amps. Always check the product specifications.
What size circuit breaker should I use?	A 32-amp breaker is usually required for standard residential models.
What cable size is appropriate for an induction cooktop?	Typically, 6mm² cable is adequate for 32 amps. Longer cable runs may necessitate 10mm² wiring.
Can I simply plug in an induction cooktop?	Portable models can be plugged in, but built-in models must be hardwired by a licensed electrician.
Is a safety switch mandatory for induction cooktops?	Yes. The circuit must have RCD protection at the switchboard, and an isolation switch should be located near the cooktop.
Can my existing switchboard support an induction cooktop?	Only if it has spare capacity, functional RCD protection, and sufficient capacity. An electrician will evaluate your switchboard before providing a quotation.

Guaranteeing Safe and Professional Electrical Installations

In Queensland, it is legally required for a licensed electrician to install built-in induction cooktops. Most units demand a dedicated circuit tailored to their specific power requirements.

A qualified electrician will:

• Examine your home’s existing wiring
• Ensure the switchboard has spare capacity and operational RCD protection
• Establish the dedicated circuit leading back to the switchboard
• Add an isolation switch
• Incorporate surge protection to guard against power spikes
• Confirm compliance with Australian electrical standards

Installation costs will vary based on your current setup and any required upgrades. Your electrician will inform you on-site if additional cabling or switchboard enhancements are necessary.

Can My Switchboard Handle the Induction Cooktop Load?

The answer to this question can differ. It relies on four key factors that your electrician will assess before proceeding with any orders.

• A spare capacity. The new dedicated circuit will require its own breaker, necessitating space on the switchboard.
• RCD protection. The cooktop circuit must have a safety switch. Older switchboards might not provide this protection or may only cover certain areas of the house.
• The condition of the switchboard. If it contains ceramic fuses or heat-damaged wiring, it may need replacement instead of upgrades.
• The power supply into the house. The mains and main switch must accommodate the new load alongside existing appliances.

A complete switchboard upgrade isn’t always necessary. Many switchboards have spare capacity and are in good condition, meaning only the new circuit may be required.

Moving from Gas Cooking to Induction Cooktops

This change often surprises homeowners. Kitchens that have traditionally relied on gas usually do not have a dedicated cooking circuit behind the cooktop, only a power point for ignition. This leaves no option to plug in an induction cooktop.

The electrical work involved includes running a new dedicated circuit from the switchboard to the cooktop. This circuit must be equipped with its own breaker, RCD protection, and an isolation switch. Access to the wall or ceiling for cabling may be needed, so ensure this is scheduled before the cabinetmaker begins their work.

Disconnecting and capping the old gas supply is a separate licensed task. Our team manages the electrical aspects, which usually represent the more significant portion of the work during a transition.

Understanding the Functionality of Induction Cooktops

Induction cooktops operate using a magnetic field, rather than relying on a hot element. This technology allows for faster heating, increased efficiency, and a safer alternative to traditional electric or gas cooktops, providing you with enhanced control over cooking temperatures.

The Fundamental Principle of Induction Cooking

Copper coils located beneath the ceramic glass create a magnetic field. When compatible cookware is placed on top, this field transfers energy directly into the pot or pan.

The pan itself becomes the heat source, while the glass surface remains relatively cool. This efficient energy transfer results in minimal heat loss compared to other cooking methods.

Only magnetic cookware, such as cast iron or certain types of stainless steel, is suitable for induction cooking. A simple test: if a fridge magnet sticks to the bottom of the pan, it will work with induction.

Why Induction Cooktops Are Gaining Popularity

Induction technology heats pans faster than conventional electric elements. When you reduce the heat, the response is equally swift.

The surface remains cool to the touch, making it a safer option for households with children. Spills do not adhere, allowing for quick and effortless cleaning.

Induction cooktops are also more cost-effective to operate. They direct most of their energy into the cookware rather than heating the surrounding air, thereby minimising wasted energy costs.

You also enjoy precise control. The heat adjusts in small increments, which is especially beneficial for delicate tasks such as melting chocolate or maintaining a gentle simmer.

Electrical Wiring Standards for Induction Cooktops in Queensland

To ensure safe operation, an induction cooktop must connect to the appropriate electrical setup. Correct circuit, breaker, and cable specifications will ensure reliable performance for years to come.

Voltage and Frequency Requirements

Most induction cooktops function on standard single-phase power: 220-240V AC at 50Hz, which is typically available in Queensland homes.

Certain high-end models may require three-phase power at 380-415V AC, 50Hz, though these are more commonly found in commercial kitchens than in residential settings.

The power rating of the cooktop dictates the type of supply needed. Most residential units range between 3.7kW and 7.4kW and operate effectively on single-phase power.

Dedicated Circuit and Circuit Breaker Specifications

An induction cooktop must have its own dedicated circuit, ensuring that no other appliances share that line.

A licensed electrician will install a circuit breaker tailored to your cooktop’s specifications. Most residential units typically require:

• A 20-32 amp circuit breaker
• Heavy-duty cabling
• Direct hardwiring back to the switchboard

Safety Switch (RCD) at the Switchboard

The cooktop circuit must have RCD protection, which is provided by the safety switch on your switchboard. This device cuts power if current leaks to earth, thus protecting users rather than just the appliance.

The RCD is separate from the isolation switch on the wall and different from the circuit breaker. Many older switchboards lack RCD protection or only cover specific outlets, so this must be addressed during the cooktop installation.

Isolation Switch (Kill Switch)

To comply with Australian electrical standards (AS/NZS 3000:2018 Wiring Rules), a dedicated isolation switch must be installed near the cooktop. This switch allows for quick power disconnection in emergencies or for maintenance. It should be easily accessible, typically within two metres of the cooktop but not directly above it or in a difficult location.

Compliance with Standards and Regulations

All installations must adhere to the AS/NZS 3000 Wiring Rules. There should be a minimum clearance of 50mm from the front edge of the benchtop to the cooktop cut-out.

A surge arrestor is essential for protecting the cooktop’s electronics from power spikes. Many manufacturers stipulate the installation of a surge arrestor to maintain warranty coverage.

Upon completion of the installation, your electrician must provide a Certificate of Compliance, which serves as proof that the work meets Queensland safety standards and building codes.

Critical Factors to Consider When Installing Induction Cooktops

Installing an induction cooktop requires careful planning regarding both wiring and the physical space it occupies. Proper clearances ensure optimal performance and longevity of the unit.

Choosing Between Built-In or Portable Models

A portable single-zone induction cooktop can be plugged into a standard power point and does not require electrical installation. This is the only type you can set up independently.

In contrast, a built-in cooktop must be hardwired to its own circuit by a licensed electrician. It cannot connect to a standard power point or extension lead.

Ventilation and Clearance Requirements

Proper ventilation is crucial for an induction cooktop to operate effectively. Sufficient clearance allows heat to dissipate, preventing the underlying electronics from overheating.

Required Clearances:

• Front: At least 50mm clearance between the front edge of the benchtop and the cooktop cut-out.
• Base: At least 100mm clearance between the cooktop base and any safety barrier.
• Overhead: Adequate space for the rangehood, following the manufacturer’s specifications.
• Sides: Adhere to the manufacturer’s guidelines for side spacing.

Maintaining good airflow around the unit enhances its performance and durability. Some models may require additional space beneath for cooling, with specifications varying from one cooktop to another. Always consult the manufacturer’s recommendations before modifying cabinetry.

Enhancing Energy Efficiency and Lowering Operating Costs

Induction cooking presents an economical solution for Queensland households, leading to reduced power bills over time.

Understanding Power Consumption

As the heat is directed straight into the pan, minimal energy is wasted heating the air around it. The power draw at any given moment depends on the number of cooking zones being used and their specific settings.

The key figure for wiring purposes is the total kilowatt rating displayed on the compliance plate. This rating informs the circuit sizing.

Efficiency Comparisons with Traditional Cooking Methods

Traditional electric elements must first heat themselves before warming the pan. Induction technology eliminates this step, as the pan itself acts as the heating element, resulting in less energy wasted in heating the cooktop.

Very little heat escapes into the room, as the surface stays cool. This keeps the kitchen environment comfortable and lessens the load on air conditioning during the hot Queensland summers.

Water boils more quickly on induction cooktops.

Thorough Answers to Your Induction Cooktop Questions

What electrical specifications are needed for an induction cooktop in Queensland? Most residential induction cooktops in Queensland require a dedicated circuit with a 240V single-phase supply, drawing between 20 and 32 amps. The installation must include its own breaker, RCD protection at the switchboard, an isolation switch within two metres of the cooktop, surge protection, and must be hardwired by a licensed electrician. All installations must comply with the AS/NZS 3000:2018 Wiring Rules.

What is the typical amp consumption of an induction cooktop? Most residential induction cooktops draw between 20 and 32 amps at full load. A standard 60cm four-zone cooktop usually requires a 32-amp dedicated circuit. Always verify your model’s specifications, as power requirements can vary from 3.7kW to 7.4kW for single-phase residential units.

What size circuit breaker is needed for an induction cooktop? Generally, a 32-amp breaker is required for most standard residential cooktops on a dedicated circuit. Your electrician will confirm the appropriate breaker size based on your specific model and cable run length.

What cable size is suitable for an induction cooktop? Typically, a 6mm² cable is appropriate for a standard 32-amp induction cooktop circuit. For longer cable runs from the switchboard to the cooktop, a 10mm² cable may be necessary to prevent voltage drops. Your electrician will determine the correct size based on your kitchen layout.

Is three-phase power necessary for induction cooktops? Most Brisbane homes do not require it. Single-phase power is sufficient for the majority of residential models up to 7.4kW. Only high-end or larger cooktops, typically above 7.4kW, require three-phase power at 380 to 415V. Always check your model’s specifications or consult a licensed electrician.

Can my existing switchboard accommodate an induction cooktop? Only if it has a spare capacity for the new breaker, functioning RCD protection, and sufficient capacity on the mains. Older switchboards with ceramic fuses or lacking safety switches may need upgrades. Many switchboards are adequate and will only require the addition of the new circuit.

Is a safety switch required for an induction cooktop? Yes. The cooktop circuit must be RCD protected at the switchboard. The RCD is designed to trip when current leaks to earth, ensuring safety for the user. This is separate from the circuit breaker and the isolation switch on the wall.

Is an isolation switch necessary for an induction cooktop in Queensland? Yes. According to AS/NZS 3000:2018 Wiring Rules, a dedicated isolation switch must be installed near the cooktop, typically within two metres for easy access. This allows for quick power disconnection during emergencies or maintenance.

What electrical work is needed to replace a gas cooktop with an induction model? In most cases, a new dedicated circuit is required. Kitchens that have exclusively used gas typically do not have a cooking circuit behind the cooktop, only a power point for ignition. This means a cable must be run from the switchboard with its own breaker, RCD protection, and an isolation switch. Disconnecting the old gas supply is a separate licensed job.

Can I install an induction cooktop myself in Queensland? No. A built-in induction cooktop must be hardwired by a licensed electrician in Queensland. DIY electrical work is illegal and unsafe, potentially voiding the cooktop’s warranty. Your electrician will also provide a Certificate of Compliance upon completion, confirming that the installation meets Queensland safety standards.

Does an induction cooktop need surge protection? Yes. A surge arrestor is necessary to protect the cooktop’s electronics from power spikes, and many manufacturers mandate its installation for warranty coverage. Your electrician will include this as part of the dedicated circuit setup.

What is the cost of installing an induction cooktop in Brisbane? Installation costs vary based on your home’s existing setup. If the switchboard has spare capacity and the kitchen is conveniently located, costs will be lower. New cabling, switchboard upgrades, or three-phase power requirements can increase expenses. A licensed electrician can provide a fixed quote after assessing your home.

What clearances are necessary for an induction cooktop? Ensure at least 50mm of clearance between the front edge of the benchtop and the cooktop cut-out, a minimum of 100mm between the cooktop base and any safety barrier, and sufficient overhead space for the rangehood. Side clearances vary by brand, so always consult the specifications before making modifications to cabinetry.

Are you planning to install an induction cooktop in Brisbane? Contact Precision Electrical & Air at 0423 163 359. We will handle the circuit setup, isolation switch installation, and compliance certificate, ensuring everything is completed accurately. Induction Cooktop Installation Brisbane
