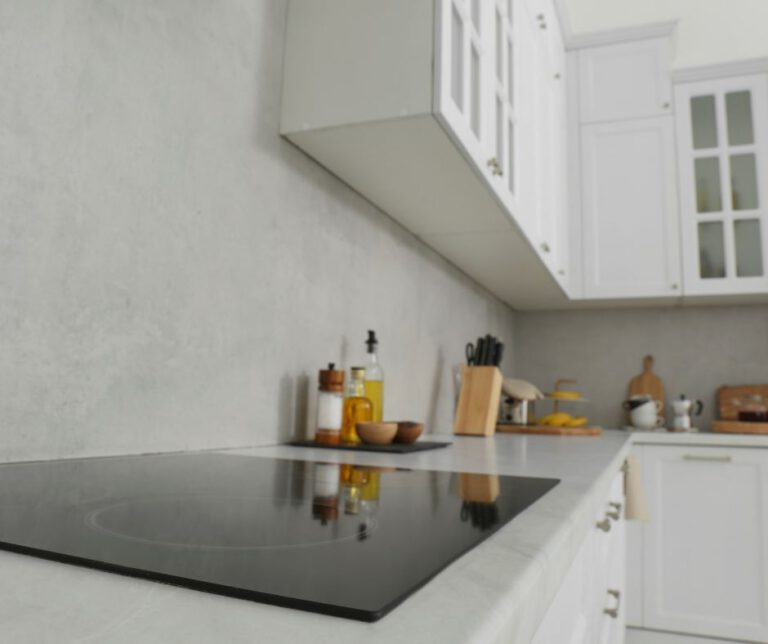

Induction Cooktop Wiring Requirements for Queensland Homes

Key Electrical Specifications for Installing Induction Cooktops in Queensland

Are you considering installing an induction cooktop in your Queensland residence? Before you proceed with your purchase, understanding the specific electrical requirements is crucial. Induction cooktops operate differently from traditional electric or gas models, making it essential to pay close attention to the wiring needs.

In Queensland, most induction cooktops require a dedicated 230-240V circuit, with many models drawing between 20 and 32 amps. As a result, your current wiring may need upgrading to safely accommodate this increased power demand.

The power requirements of your induction cooktop depend on two primary factors: the total kilowatt rating of the model you select and whether your home uses single-phase or three-phase power. Make sure you have this information on hand before you complete your purchase.

Some high-end induction cooktops may necessitate three-phase power, operating at 380-415V AC at 50Hz. This is not typically found in residential settings, so always verify the specifications of your selected model. A licensed electrician can assess your switchboard and wiring, recommending any necessary upgrades prior to installation.

Common Questions About Induction Cooktops Answered

Here are the most frequently asked questions we receive, along with brief responses from our certified electricians:

Question	Quick Answer
Is three-phase power necessary for an induction cooktop?	Most homes do not require it. Only high-end or larger cooktops (typically over 7.4kW) may need three-phase power.
What type of wiring is required for an induction cooktop?	A dedicated circuit with either 6mm² or 10mm² cabling, depending on the amperage and length of the cable run.
How many amps does an induction cooktop use?	Most induction cooktops consume between 20-32 amps. Always check the product specifications.
What size circuit breaker is needed?	A 32-amp breaker is typically required for standard residential models.
What cable size should I choose?	Generally, 6mm² cable is suitable for 32 amps. Longer cable runs may necessitate 10mm² wiring.
Can I simply plug in an induction cooktop?	Portable models can be plugged in, but built-in models must be hardwired by a licensed electrician.
Is a safety switch mandatory?	Yes. The circuit requires RCD protection at the switchboard, and an additional isolation switch should be located near the cooktop.
Will my existing switchboard support an induction cooktop?	Only if it has available space, operational RCD protection, and sufficient capacity. An electrician will evaluate your switchboard before providing a quotation.

How to Ensure a Safe and Professional Installation of Your Induction Cooktop

In Queensland, it is legally required for a licensed electrician to install built-in induction cooktops. Most units require a dedicated circuit designed to meet their specific power demands.

A qualified electrician will:

• Assess your home’s current wiring
• Confirm the switchboard has spare capacity and functional RCD protection
• Establish the dedicated circuit back to the switchboard
• Install an isolation switch
• Implement surge protection to guard against power spikes
• Ensure compliance with Australian electrical standards

Installation costs can vary based on your existing setup and any necessary upgrades. Your electrician will inform you on-site whether any additional cabling or switchboard enhancements are required.

Can My Current Switchboard Handle an Induction Cooktop?

The answer to this question depends on four critical factors that your electrician will evaluate before proceeding with any orders.

• A spare capacity. The new dedicated circuit will need its own breaker, requiring space on the switchboard.
• RCD protection. The cooktop circuit must include a safety switch. Older switchboards might lack this protection or may only cover certain areas of the house.
• The condition of the switchboard. If it contains ceramic fuses or heat-damaged wiring, it may need replacement rather than upgrades.
• The power supply into the house. The mains and main switch must accommodate the new load in addition to existing appliances.

A complete switchboard upgrade is not always necessary. Many switchboards have spare capacity and are in good condition, meaning only the new circuit may be needed.

Making the Switch from Gas Cooking to Induction Cooktops

This switch often surprises homeowners. Kitchens that have traditionally used gas typically lack a dedicated cooking circuit behind the cooktop, having only a power point for ignition. there is no outlet available to plug in an induction cooktop.

The electrical work involved includes running a new dedicated circuit from the switchboard to the cooktop, which must be equipped with its own breaker, RCD protection, and an isolation switch. This requires access to the wall or ceiling for cabling, so schedule this before the cabinetmaker starts their work.

Disconnecting and capping the old gas supply is a separate licensed task. Our team manages the electrical components, which typically represent the larger portion of the work during a transition.

Understanding How Induction Cooktops Function

Induction cooktops use a magnetic field instead of relying on a heating element. This technology enables them to heat food more quickly, operate more efficiently, and offer a safer alternative to traditional electric or gas cooktops, giving you enhanced control over cooking temperatures.

The Fundamental Principle of Induction Cooking

Copper coils located beneath the ceramic glass create a magnetic field. When compatible cookware is placed on top, this field transfers energy directly into the pot or pan.

The pan itself acts as the heat source while the glass surface remains relatively cool. This efficient energy transfer results in minimal heat loss compared to other cooking methods.

Only magnetic cookware, such as cast iron or certain stainless steel, is compatible with induction cooking. A simple test: if a fridge magnet sticks to the bottom of the pan, it will work with induction.

Why Induction Cooktops Are Gaining Popularity

Induction technology heats pans faster than conventional electric elements. When you lower the heat, it responds just as quickly.

The surface stays cool to the touch, making it a safer choice for households with children. Spills do not adhere, allowing for quick and easy cleaning.

Induction cooktops are also more economical to operate. They direct most of their energy into the cookware rather than the surrounding air, thus minimising wasted energy costs.

You also enjoy precise control. The heat adjusts in small increments, which is especially beneficial for delicate tasks like melting chocolate or maintaining a gentle simmer.

Electrical Wiring Standards for Induction Cooktops in Queensland

To ensure safe operation, an induction cooktop must connect to the appropriate electrical setup. Proper circuit, breaker, and cable specifications will ensure reliable performance for years to come.

Voltage and Frequency Requirements

Most induction cooktops operate on standard single-phase power: 220-240V AC at 50Hz, which is commonly provided in Queensland homes.

Certain high-end models may require three-phase power at 380-415V AC, 50Hz, although these are more frequently found in commercial kitchens than in residential settings.

The power rating of the cooktop determines the type of supply needed. Most residential units range between 3.7kW and 7.4kW and function effectively on single-phase power.

Requirements for Dedicated Circuits and Circuit Breakers

An induction cooktop must have its own dedicated circuit, ensuring that no other appliances share that line.

A licensed electrician will install a circuit breaker tailored to your cooktop’s specifications. Most residential units typically require:

• A 20-32 amp circuit breaker
• Heavy-duty cabling
• Direct hardwiring back to the switchboard

Safety Switch (RCD) Requirements at the Switchboard

The cooktop circuit must include RCD protection, which is provided by the safety switch on your switchboard. This device cuts power in the event of current leakage to earth, protecting users rather than just the appliance.

The RCD is a separate unit from the isolation switch on the wall and different from the circuit breaker. Many older switchboards lack RCD protection or only cover specific outlets, so this should be addressed during the cooktop installation.

Isolation Switch (Kill Switch) Specifications

To comply with Australian electrical standards (AS/NZS 3000:2018 Wiring Rules), a dedicated isolation switch must be fitted near the cooktop. This switch enables quick power disconnection in emergencies or for maintenance. It should be easily accessible, typically within two metres of the cooktop but not directly above it or in a difficult location.

Compliance with Standards and Regulations

All installations must adhere to the AS/NZS 3000 Wiring Rules. A minimum clearance of 50mm is required from the front edge of the benchtop to the cooktop cut-out.

A surge arrestor is essential for protecting the cooktop’s electronics from power spikes. Many manufacturers require the installation of a surge arrestor as a condition for warranty coverage.

Upon completion of the installation, your electrician must provide a Certificate of Compliance, which serves as proof that the work meets Queensland safety standards and building codes.

Key Considerations for Induction Cooktop Installation

Installing an induction cooktop necessitates careful planning concerning both wiring and the physical space it occupies. Proper clearances ensure optimal performance and longevity of the unit.

Choosing Between Built-In or Portable Models

A portable single-zone induction cooktop can be plugged into a standard power point and requires no electrical installation. This is the only type you can set up independently.

In contrast, a built-in cooktop must be hardwired to its own circuit by a licensed electrician. It cannot be connected to a standard power point or extension lead.

Guidelines for Ventilation and Clearance

Adequate ventilation is essential for an induction cooktop to function properly. Sufficient clearance allows heat to dissipate, preventing the underlying electronics from overheating.

Required Clearances:

• Front: At least 50mm clearance between the front edge of the benchtop and the cooktop cut-out.
• Base: At least 100mm clearance between the cooktop base and any safety barrier.
• Overhead: Ample space for the rangehood, adhering to the manufacturer’s specifications.
• Sides: Follow the manufacturer’s guidelines for side spacing.

Maintaining good airflow around the unit enhances its performance and durability. Some models may require additional space beneath for cooling, with specifications varying from one cooktop to another. Always consult the manufacturer’s recommendations before modifying cabinetry.

Optimising Energy Efficiency and Reducing Running Costs

Induction cooking provides an economical option for Queensland households, helping to lower electricity bills over time.

Understanding Power Consumption in Induction Cooking

As the heat is directed straight into the pan, minimal energy is wasted heating the air around it. The power draw at any given moment depends on the number of cooking zones being utilised and their respective settings.

The key figure for wiring purposes is the total kilowatt rating displayed on the compliance plate. This rating guides the circuit sizing.

Comparing Efficiency Levels

Traditional electric elements must first heat themselves before warming the pan. Induction technology eliminates this unnecessary step, as the pan itself acts as the heating element, resulting in reduced energy wastage.

Very little heat escapes into the room, as the surface remains cool. This keeps the kitchen environment comfortable and reduces the load on air conditioning during Queensland’s hot summers.

Water boils more quickly on induction cooktops.

Thorough Answers to Your Induction Cooktop Questions

What electrical requirements must be met for an induction cooktop in Queensland? Most residential induction cooktops in Queensland need a dedicated circuit with a 240V single-phase supply, drawing between 20 and 32 amps. The installation must include its own breaker, RCD protection at the switchboard, an isolation switch within two metres of the cooktop, surge protection, and must be hardwired by a licensed electrician. All installations must comply with the AS/NZS 3000:2018 Wiring Rules.

How many amps does an induction cooktop generally consume? Most residential induction cooktops draw between 20 and 32 amps at full load. A standard 60cm four-zone cooktop typically requires a 32-amp dedicated circuit. Always verify your model’s specifications, as power requirements can range from 3.7kW to 7.4kW for single-phase residential units.

What size circuit breaker is necessary for an induction cooktop? Typically, a 32-amp breaker is required for most standard residential cooktops on a dedicated circuit. Your electrician will confirm the appropriate breaker size based on your specific model and cable run length.

What cable size is appropriate for an induction cooktop? Generally, a 6mm² cable is suitable for a standard 32-amp induction cooktop circuit. For longer cable runs from the switchboard to the cooktop, a 10mm² cable may be required to prevent voltage drops. Your electrician will determine the correct size based on your kitchen layout.

Is three-phase power necessary for induction cooktops? Most Brisbane homes do not require it. Single-phase power is sufficient for the majority of residential models up to 7.4kW. Only high-end or larger cooktops, typically above 7.4kW, require three-phase power at 380 to 415V. Always check your model’s specifications or consult a licensed electrician.

Can my existing switchboard support an induction cooktop? Only if it has a spare capacity for the new breaker, functional RCD protection, and sufficient capacity on the mains. Older switchboards with ceramic fuses or lacking safety switches may need upgrades. Many switchboards are adequate and will only require the addition of the new circuit.

Is a safety switch required for an induction cooktop? Yes. The cooktop circuit must be RCD protected at the switchboard. The RCD is designed to trip when current leaks to earth, ensuring safety for the user. This is separate from the circuit breaker and the isolation switch on the wall.

Is an isolation switch necessary for an induction cooktop in Queensland? Yes. According to AS/NZS 3000:2018 Wiring Rules, a dedicated isolation switch must be installed near the cooktop, typically within two metres for easy access. This allows for quick power disconnection during emergencies or maintenance.

What electrical work is necessary to replace a gas cooktop with an induction model? In most cases, a new dedicated circuit is required. Kitchens that have exclusively used gas typically do not have a cooking circuit behind the cooktop, only a power point for ignition. This means a cable must be run from the switchboard with its own breaker, RCD protection, and an isolation switch. Disconnecting the old gas supply is a separate licensed job.

Can I install an induction cooktop myself in Queensland? No. A built-in induction cooktop must be hardwired by a licensed electrician in Queensland. DIY electrical work is illegal and unsafe, potentially voiding the cooktop’s warranty. Your electrician will also provide a Certificate of Compliance upon completion, confirming that the installation meets Queensland safety standards.

Does an induction cooktop require surge protection? Yes. A surge arrestor is necessary to protect the cooktop’s electronics from power spikes, and many manufacturers mandate its installation for warranty coverage. Your electrician will include this as part of the dedicated circuit setup.

What is the cost of installing an induction cooktop in Brisbane? Installation costs vary based on your home’s existing setup. If the switchboard has spare capacity and the kitchen is conveniently located, the costs will be lower. New cabling, switchboard upgrades, or three-phase power requirements can increase expenses. A licensed electrician can provide a fixed quote after assessing your home.

What clearances are required for an induction cooktop? Ensure at least 50mm of clearance between the front edge of the benchtop and the cooktop cut-out, a minimum of 100mm between the cooktop base and any safety barrier, and adequate overhead space for the rangehood. Side clearances vary by brand, so always consult the specifications before making modifications to cabinetry.

Are you planning to install an induction cooktop in Brisbane? Contact Precision Electrical & Air at 0423 163 359. We will manage the circuit setup, isolation switch installation, and compliance certificate, ensuring everything is completed accurately. Induction Cooktop Installation Brisbane
