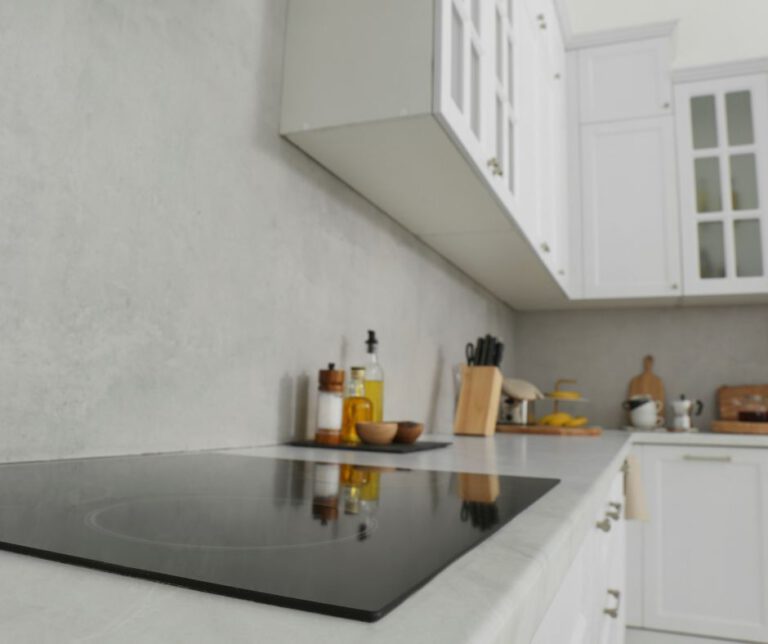

Induction Cooktop Electrical Requirements for Queensland Homes

Key Electrical Specifications for Installing Induction Cooktops

Are you considering adding an induction cooktop to your Queensland home? Before making your purchase, it is crucial to understand the specific electrical requirements. Induction cooktops operate differently from traditional electric or gas models, making the wiring requirements especially significant.

In Queensland, most induction cooktops require a dedicated 230-240V circuit, with many models drawing between 20 and 32 amps. As a result, your existing wiring may need an upgrade to accommodate this increased power demand safely.

The power requirements for your induction cooktop depend on two key factors: the total kilowatt rating of the specific model you select and whether your home utilises single-phase or three-phase power. Gather this information before finalising your order.

Some high-end induction cooktops may require three-phase power, operating at 380-415V AC at 50Hz. This is generally uncommon in residential settings, so always check the specifications of your chosen model. A licensed electrician can assess your switchboard and wiring, providing recommendations for any necessary upgrades before installation.

Common Questions About Induction Cooktops Answered

Here are some frequently asked questions along with concise answers provided by our certified electricians:

Question	Quick Answer
Is three-phase power necessary for an induction cooktop?	Most households do not require three-phase power. Only high-end or larger cooktops (typically over 7.4kW) may need it.
What type of wiring is required for an induction cooktop?	A dedicated circuit with either 6mm² or 10mm² cabling, depending on the amperage and the length of the cable run.
How many amps does an induction cooktop consume?	Most induction cooktops draw between 20-32 amps. Always check the product specifications for confirmation.
What size circuit breaker is necessary?	A 32-amp breaker is generally required for standard residential models.
What cable size should I choose?	Typically, 6mm² cable works for 32 amps. For longer cable runs, a 10mm² wire may be required.
Can I plug in an induction cooktop?	Portable models can be plugged in, but built-in models must be hardwired by a licensed electrician.
Is a safety switch mandatory?	Yes. The circuit requires RCD protection at the switchboard, and an additional isolation switch should be located near the cooktop.
Can my existing switchboard support an induction cooktop?	Only if it has available space, functional RCD protection, and adequate capacity. An electrician will evaluate your switchboard before providing a quotation.

Ensuring Safe and Compliant Electrical Installation

In Queensland, a licensed electrician must install built-in induction cooktops. Most units require a dedicated circuit designed to meet their specific power needs.

A qualified electrician will:

• Inspect your home’s existing wiring
• Confirm that the switchboard has spare capacity and operational RCD protection
• Establish the dedicated circuit back to the switchboard
• Install an isolation switch
• Implement surge protection to guard against power spikes
• Ensure compliance with Australian electrical standards

Installation costs will vary based on your existing setup and any necessary upgrades. Your electrician will advise you on-site about any additional cabling or switchboard enhancements that may be required.

Can My Switchboard Support an Induction Cooktop?

The answer to this question can differ. It depends on four critical factors that your electrician will evaluate before proceeding with any orders.

• A spare capacity. The new dedicated circuit will need its own breaker, requiring space on the switchboard.
• RCD protection. The cooktop circuit must include a safety switch. Older switchboards might lack this protection or may only cover certain areas of the house.
• The condition of the switchboard. If it contains ceramic fuses or heat-damaged wiring, it might need replacement instead of upgrades.
• The power supply into the house. The mains and main switch must accommodate the new load along with existing appliances.

A complete switchboard upgrade is not always necessary. Many switchboards have spare capacity and are in good condition, meaning only the new circuit may be required.

Making the Shift from Gas Cooking to Induction Cooktops

This transition often surprises homeowners. Kitchens that have historically relied on gas typically lack a dedicated cooking circuit behind the cooktop, featuring only a power point for ignition. This means there is no available outlet for an induction cooktop.

The electrical work involved includes running a new dedicated circuit from the switchboard to the cooktop, which must be equipped with its own breaker, RCD protection, and an isolation switch. Access to the wall or ceiling for cabling will be required, so it’s important to schedule this before the cabinetmaker begins their work.

Disconnecting and capping the old gas supply is a separate licensed task. Our team handles the electrical aspects, which typically constitute the more significant portion of the work during a transition.

How Induction Cooktops Function

Induction cooktops utilise a magnetic field rather than relying on a hot element. This technology enables faster heating of food, greater efficiency, and a safer alternative to traditional electric or gas cooktops, providing you with improved control over cooking temperatures.

The Fundamental Principle Behind Induction Cooking

Copper coils located beneath the ceramic glass create a magnetic field. When compatible cookware is placed on top, this field transfers energy directly into the pot or pan.

The pan itself becomes the heat source, while the glass surface remains relatively cool. This efficient energy transfer results in minimal heat loss compared to other cooking methods.

Only magnetic cookware, such as cast iron or certain stainless steel, is suitable for induction cooking. A simple test: if a fridge magnet sticks to the bottom of the pan, it will work with induction.

Why Induction Cooktops Are Gaining Popularity

Induction technology heats pans more quickly than conventional electric elements. When you lower the heat, it responds just as swiftly.

The surface stays cool to the touch, making it a safer option for households with children. Spills do not adhere, allowing for quick and easy cleaning.

Induction cooktops are also more economical to operate. They direct most of their energy into the cookware instead of the surrounding air, thereby minimising wasted energy costs.

You also benefit from precise temperature control. The heat adjusts in small increments, which is particularly beneficial for delicate tasks such as melting chocolate or maintaining a gentle simmer.

Electrical Wiring Standards for Induction Cooktops in Queensland

To ensure safe operation, an induction cooktop must be connected to the appropriate electrical setup. Proper circuit, breaker, and cable specifications will guarantee reliable performance for years to come.

Voltage and Frequency Requirements

Most induction cooktops operate on standard single-phase power: 220-240V AC at 50Hz, which is typically supplied in Queensland homes.

Certain high-end models may require three-phase power at 380-415V AC, 50Hz, although these are more commonly found in commercial kitchens than in residential environments.

The power rating of the cooktop determines the type of supply needed. Most residential units range between 3.7kW and 7.4kW and function effectively on single-phase power.

Dedicated Circuit and Circuit Breaker Specifications

An induction cooktop requires its own dedicated circuit, ensuring that no other appliances share that line.

A licensed electrician will install a circuit breaker tailored to your cooktop’s specifications. Most residential units typically require:

• A 20-32 amp circuit breaker
• Heavy-duty cabling
• Direct hardwiring back to the switchboard

Safety Switch (RCD) at the Switchboard

The cooktop circuit must have RCD protection, which is provided by the safety switch on your switchboard. This device interrupts power if current leaks to earth, protecting users rather than just the appliance.

The RCD is separate from the isolation switch on the wall and different from the circuit breaker. Many older switchboards lack RCD protection or only cover specific outlets, so this should be addressed during the cooktop installation.

Isolation Switch (Kill Switch)

To comply with Australian electrical standards (AS/NZS 3000:2018 Wiring Rules), a dedicated isolation switch must be installed near the cooktop. This switch allows for quick power disconnection during emergencies or for maintenance. It should be easily accessible, typically within two metres of the cooktop but not directly above it or in a difficult location.

Compliance with Standards and Regulations

All installations must adhere to the AS/NZS 3000 Wiring Rules. There should be a minimum clearance of 50mm from the front edge of the benchtop to the cooktop cut-out.

A surge arrestor is essential for protecting the cooktop’s electronics from power spikes. Many manufacturers require the installation of a surge arrestor as a condition for warranty coverage.

Upon completion of the installation, your electrician must issue a Certificate of Compliance, serving as proof that the work meets Queensland safety standards and building codes.

Important Considerations for Induction Cooktop Installation

Installing an induction cooktop involves careful planning regarding both wiring and the physical space it occupies. Proper clearances ensure optimal performance and longevity of the unit.

Choosing Between Built-In and Portable Models

A portable single-zone induction cooktop can be plugged into a standard power point and requires no electrical installation. This is the only type you can set up independently.

In contrast, a built-in cooktop must be hardwired to its own circuit by a licensed electrician. It cannot be connected to a standard power point or extension lead.

Ventilation and Clearance Requirements

Proper ventilation is crucial for an induction cooktop to function effectively. Sufficient clearance allows heat to dissipate, preventing the underlying electronics from overheating.

Required Clearances:

• Front: At least 50mm clearance between the front edge of the benchtop and the cooktop cut-out.
• Base: At least 100mm clearance between the cooktop base and any safety barrier.
• Overhead: Adequate space for the rangehood, following the manufacturer’s specifications.
• Sides: Follow the manufacturer’s guidelines for side spacing.

Maintaining good airflow around the unit enhances its performance and durability. Some models may need extra space beneath for cooling, with specifications varying from one cooktop to another. Always consult the manufacturer’s recommendations before modifying cabinetry.

Optimising Energy Efficiency and Reducing Operating Costs

Induction cooking provides an economical solution for Queensland households, contributing to lower power bills over time.

Understanding Power Usage

As the heat is directed straight into the pan, minimal energy is wasted heating the surrounding air. The power draw at any given moment depends on the number of cooking zones being used and their respective settings.

The key figure for wiring considerations is the total kilowatt rating displayed on the compliance plate. This rating guides the circuit sizing.

Efficiency Comparisons

Traditional electric elements must first heat themselves before warming the pan. Induction technology eliminates this step, as the pan itself serves as the heating element, resulting in less energy wasted in heating the cooktop.

Very little heat escapes into the room, as the surface remains cool. This keeps the kitchen environment comfortable and reduces the strain on air conditioning during the hot Queensland summers.

Water boils more quickly on induction cooktops.

Comprehensive Answers to Your Induction Cooktop Questions

What are the electrical requirements for an induction cooktop in Queensland? Most residential induction cooktops in Queensland require a dedicated circuit with a 240V single-phase supply, drawing between 20 and 32 amps. The installation must include its own breaker, RCD protection at the switchboard, an isolation switch within two metres of the cooktop, surge protection, and must be hardwired by a licensed electrician. All installations must comply with the AS/NZS 3000:2018 Wiring Rules.

How many amps does an induction cooktop generally use? Most residential induction cooktops draw between 20 and 32 amps at full load. A standard 60cm four-zone cooktop typically requires a 32-amp dedicated circuit. Always verify your model’s specifications, as power requirements can range from 3.7kW to 7.4kW for single-phase residential units.

What size circuit breaker is necessary for an induction cooktop? Typically, a 32-amp breaker is needed for most standard residential cooktops on a dedicated circuit. Your electrician will confirm the appropriate breaker size based on your specific model and cable run length.

What cable size is suitable for an induction cooktop? Generally, a 6mm² cable is appropriate for a standard 32-amp induction cooktop circuit. For longer cable runs from the switchboard to the cooktop, a 10mm² cable may be necessary to prevent voltage drops. Your electrician will determine the correct size based on your kitchen layout.

Is three-phase power necessary for induction cooktops? Most Brisbane homes do not require it. Single-phase power is sufficient for the majority of residential models up to 7.4kW. Only high-end or larger cooktops, typically above 7.4kW, require three-phase power at 380 to 415V. Always check your model’s specifications or consult a licensed electrician.

Can my existing switchboard handle an induction cooktop? Only if it has a spare capacity for the new breaker, functioning RCD protection, and sufficient capacity on the mains. Older switchboards with ceramic fuses or lacking safety switches may need upgrades. Many switchboards are adequate and will only need the addition of the new circuit.

Is a safety switch required for an induction cooktop? Yes. The cooktop circuit must be RCD protected at the switchboard. The RCD is designed to trip when current leaks to earth, ensuring safety for the user. This is separate from the circuit breaker and the isolation switch on the wall.

Is an isolation switch necessary for an induction cooktop in Queensland? Yes. According to AS/NZS 3000:2018 Wiring Rules, a dedicated isolation switch must be installed near the cooktop, typically within two metres for easy access. This allows for quick power disconnection during emergencies or maintenance.

What electrical work is needed to replace a gas cooktop with an induction model? In most cases, a new dedicated circuit is necessary. Kitchens that have exclusively used gas typically do not have a cooking circuit behind the cooktop, only a power point for ignition. This means a cable must be run from the switchboard with its own breaker, RCD protection, and an isolation switch. Disconnecting the old gas supply is a separate licensed job.

Can I install an induction cooktop myself in Queensland? No. A built-in induction cooktop must be hardwired by a licensed electrician in Queensland. DIY electrical work is illegal and unsafe, potentially voiding the cooktop’s warranty. Your electrician will also provide a Certificate of Compliance upon completion, confirming that the installation meets Queensland safety standards.

Does an induction cooktop require surge protection? Yes. A surge arrestor is necessary to protect the cooktop’s electronics from power spikes, and many manufacturers mandate its installation for warranty coverage. Your electrician will include this as part of the dedicated circuit setup.

What is the cost of installing an induction cooktop in Brisbane? Installation costs vary based on your home’s existing setup. If the switchboard has spare capacity and the kitchen is conveniently located, the costs will be lower. New cabling, switchboard upgrades, or three-phase power requirements can increase expenses. A licensed electrician can provide a fixed quote after assessing your home.

What clearances are necessary for an induction cooktop? Ensure at least 50mm of clearance between the front edge of the benchtop and the cooktop cut-out, a minimum of 100mm between the cooktop base and any safety barrier, and adequate overhead space for the rangehood. Side clearances vary by brand, so always consult the specifications before making modifications to cabinetry.

Are you planning to install an induction cooktop in Brisbane? Contact Precision Electrical & Air at 0423 163 359. We will handle the circuit setup, isolation switch installation, and compliance certificate, ensuring everything is completed accurately. Induction Cooktop Installation Brisbane
