Dedicated Circuits for Workshop Power Solutions with Heavy Tools

If you have a shed on a rural property and are considering transforming this space into a fully operational workshop, it’s crucial to focus on the electrical configuration. Using a MIG welder, air compressor, and table saw on the same circuit as your home can lead to significant problems, including frequent circuit breaker trips, flickering lights, and potentially hazardous overload situations that can jeopardise both safety and functionality.

This comprehensive guide details the essential components of wiring a reliable workshop in the rural Mid North Coast. We will explore the importance of dedicated circuits, sub-boards, and the benefits of three-phase power for larger machinery. If your needs are primarily basic—such as lighting and a few outlets—please consult our guide on Shed Wiring on Acreage for a suitable starting point. This article specifically targets workshops that require significant power for demanding tasks.

Understand the Critical Role of Dedicated Circuits in Workshop Power Supply

Many households operate multiple power points on shared circuits, which typically suffices for low-consumption devices like kettles and televisions. complications arise when trying to run a 32-amp MIG welder and an air compressor at the same time. This scenario can lead to severe issues if not managed correctly.

Consider the potential ramifications of connecting heavy machinery to household circuits:

• Frequent circuit breaker trips — A welder drawing over 30 amps on a 20-amp circuit can trip the breaker instantly or, worse, cause the wiring to overheat before the breaker activates.
• Voltage drops — Long cable runs from the main board to the shed can cause voltage sag, resulting in your tools operating at elevated temperatures, performing sluggishly, and deteriorating more quickly.
• Power disruptions in the household — Your partner might face a power outage in the kitchen due to the compressor’s startup, which often leads to unwelcome discussions.
• Increased fire risks — Overloaded wiring within walls and cable runs is a primary cause of electrical fires in rural settings.

Implementing dedicated circuits can effectively resolve these challenges. Each heavy tool will have its own dedicated circuit, appropriately sized for its load, along with individual breaker protection. This setup ensures that nothing is shared, thus preventing overloads.

Comprehend the Power Requirements of Common Workshop Tools

Before your electrician can develop an effective circuit layout, it’s vital to grasp the power requirements of your tools. Below is an overview of the typical power consumption for common workshop equipment:

• MIG welder — Requires between 15A and 32A depending on the model. Larger 240V welders typically operate at the higher end. Three-phase units may have different power requirements (more details to come).
• Air compressor — Consumes approximately 10A to 15A. The startup surge can be considerable—compressor motors often draw 3 to 4 times their running current for several seconds when starting.
• Table saw — Generally consumes between 10A to 15A for a quality cabinet saw. Less expensive contractor saws may consume less power, but you are likely seeking a robust option.
• Lathe (wood or metal) — Similar to table saws, these typically require between 10A and 15A, with metal lathes usually consuming more.
• Dust extractor — Approximately 10A for a single-phase unit. It must run continuously while using other tools, which means it should have its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, necessitating a dedicated circuit.

When you total the power draw, it becomes evident that a single 20-amp circuit from the house will not be sufficient. A well-equipped workshop can easily demand 80 to 100+ amps across all circuits when operating at full capacity, highlighting the necessity for a comprehensive electrical plan.

Select the Appropriate Circuit Breaker Size and Incorporate RCD Protection

Every circuit in your workshop requires a breaker that corresponds with the cable size and expected load. Your electrician will calculate this based on your equipment, but as a general guideline, consider the following:

• 15A or 20A circuits — Ideal for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Essential for welders, plasma cutters, and other heavy single-phase machinery that requires substantial power.
• Three-phase breakers — These should be sized according to specific equipment requirements (details provided below).

RCD protection is indispensable. In accordance with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must incorporate RCD (safety switch) protection. This legal requirement is intended to protect against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs quickly cut power if there is a current leak to earth, which can mean the difference between a minor shock and a serious injury.

Typically, your electrician will employ a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that integrate both functionalities. RCBOs are particularly beneficial in workshops because a fault in one circuit does not disrupt power to others, enhancing overall reliability.

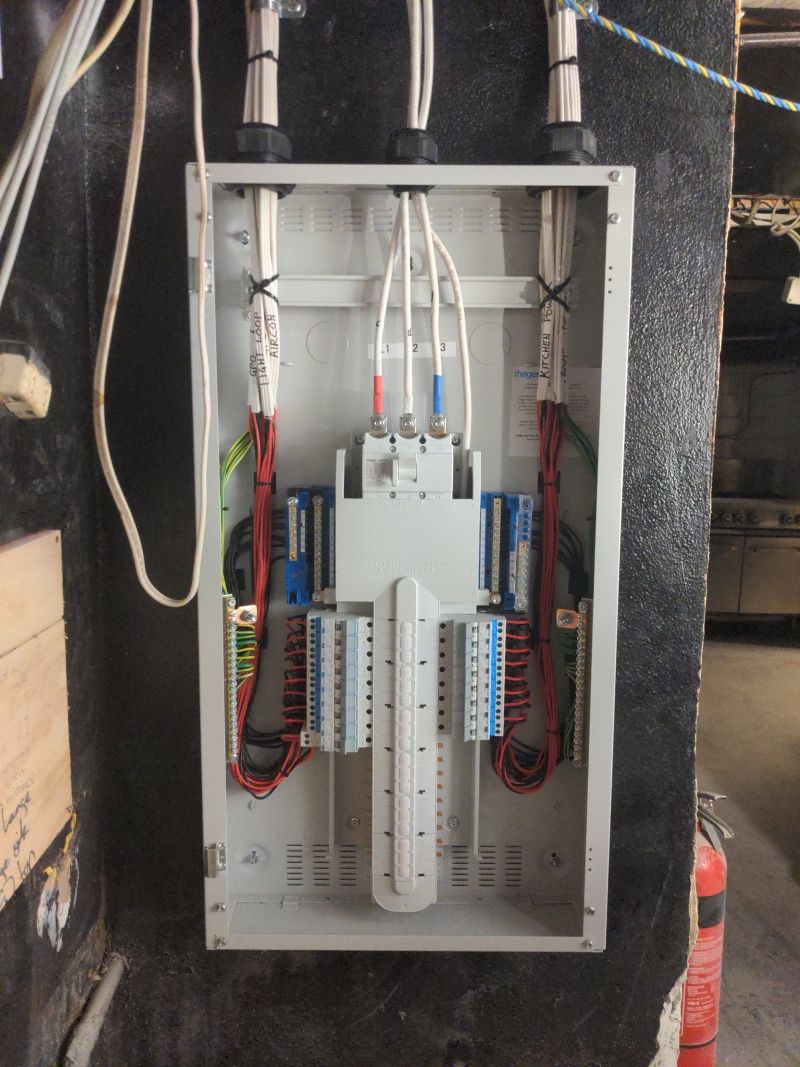

Establish a Dedicated Sub-Board for Your Workshop’s Electrical Demands

Instead of running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop is a more effective solution. Here are the advantages:

• Shorter cable runs — One heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This setup reduces voltage drop and minimises cable costs.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t need to walk back to the house to reset it, improving efficiency.
• Future expansion — A properly sized sub-board allows for the addition of more circuits in the future, making it easy to incorporate new tools later on.
• Isolation capability — You can turn off all workshop power from a single main switch without affecting the household electricity, which is critical for safety.

If your house switchboard is outdated or operating at full capacity, you may need an upgrade to effectively support the workshop sub-board. Older ceramic fuse boards typically cannot safely handle the increased load.

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions to ensure long-term efficiency.

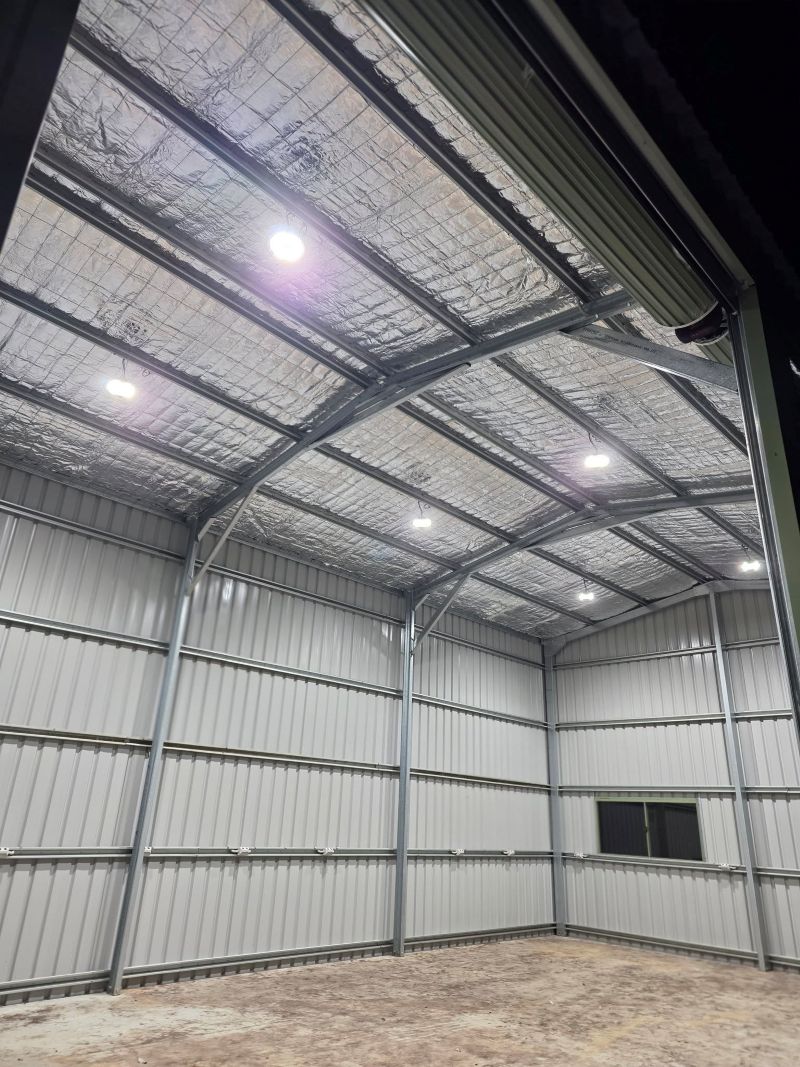

Design an Effective Lighting Strategy for Your Workshop

Adequate lighting is essential for safety in your workshop. You need to see your work clearly, especially when using sharp blades and handling hot materials. Here are some key lighting considerations:

• High-lumen LED battens — LED panels or battens deliver bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure visibility.
• Dust-proof fittings — Standard lights can become clogged with sawdust and metal shavings. Choose IP-rated fittings that are dust and moisture resistant for durability and safety.
• Task lighting at workstations — While overhead lighting illuminates the general area, focused lighting at the workbench, lathe, and drill press is vital for precision work, enhancing both productivity and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring you still have illumination if a power circuit trips. Being left in the dark next to a running table saw poses a significant safety hazard.

We have extensive experience with lighting layouts in commercial settings. Our team can help you develop a workshop lighting plan that significantly improves your working environment while adhering to safety standards.

Plan for Effective Ventilation and Dust Extraction Circuits

When engaging in woodworking or welding, ensuring proper ventilation is equally important as having sufficient electrical power. Dust extraction systems and exhaust fans require dedicated circuits due to several critical factors:

• Continuous operation — Your dust extractor must run whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise safety and effectiveness.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In an optimally designed workshop, the dust extractor can be wired to activate automatically when certain tools are powered on. This requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure proper airflow. If you are using a cyclone-style dust collection system, it might require a 20A circuit based on motor specifications.

Maximise the Advantages of Three-Phase Power for Heavy Equipment

When you undertake intensive metalwork or operate large compressors (5HP+) or commercial-grade woodworking machines, single-phase power may reach its limits. Three-phase power presents several distinct benefits:

• Enhanced power capacity — Three-phase motors are more efficient and deliver greater power without the excessive startup surges typical of single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables generally operate on three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors run more smoothly and cooler, which extends the lifespan of your tools and boosts overall efficiency.

Access to three-phase power in rural locations on the Mid North Coast depends on availability at the street level. Some properties may already have three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For further details, refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will need a three-phase switchboard outfitted with appropriately rated breakers and an effective earthing system to ensure safety and compliance.

Safeguard Your Equipment with Surge Protection

Tools equipped with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly susceptible to voltage spikes. Notably, workshops generate surges every time large motors start or stop. Coupled with the voltage instabilities often present in rural power lines, your equipment is at considerable risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they affect your tools. This is a cost-effective measure compared to the expense of replacing the electronic components of a $3,000 welder or CNC controller.

If your property is prone to storms—which is common on the Mid North Coast—we recommend adding surge protection at the main switchboard to protect against lightning-induced surges that could damage your equipment.

For properties reliant on a generator for backup power, incorporating a generator changeover switch ensures seamless transitions between mains power and generator supply without risking back-feeding or damaging connected equipment.

Essential Features to Include in Your Workshop Setup

Here are several more elements to incorporate into your workshop wiring from the outset:

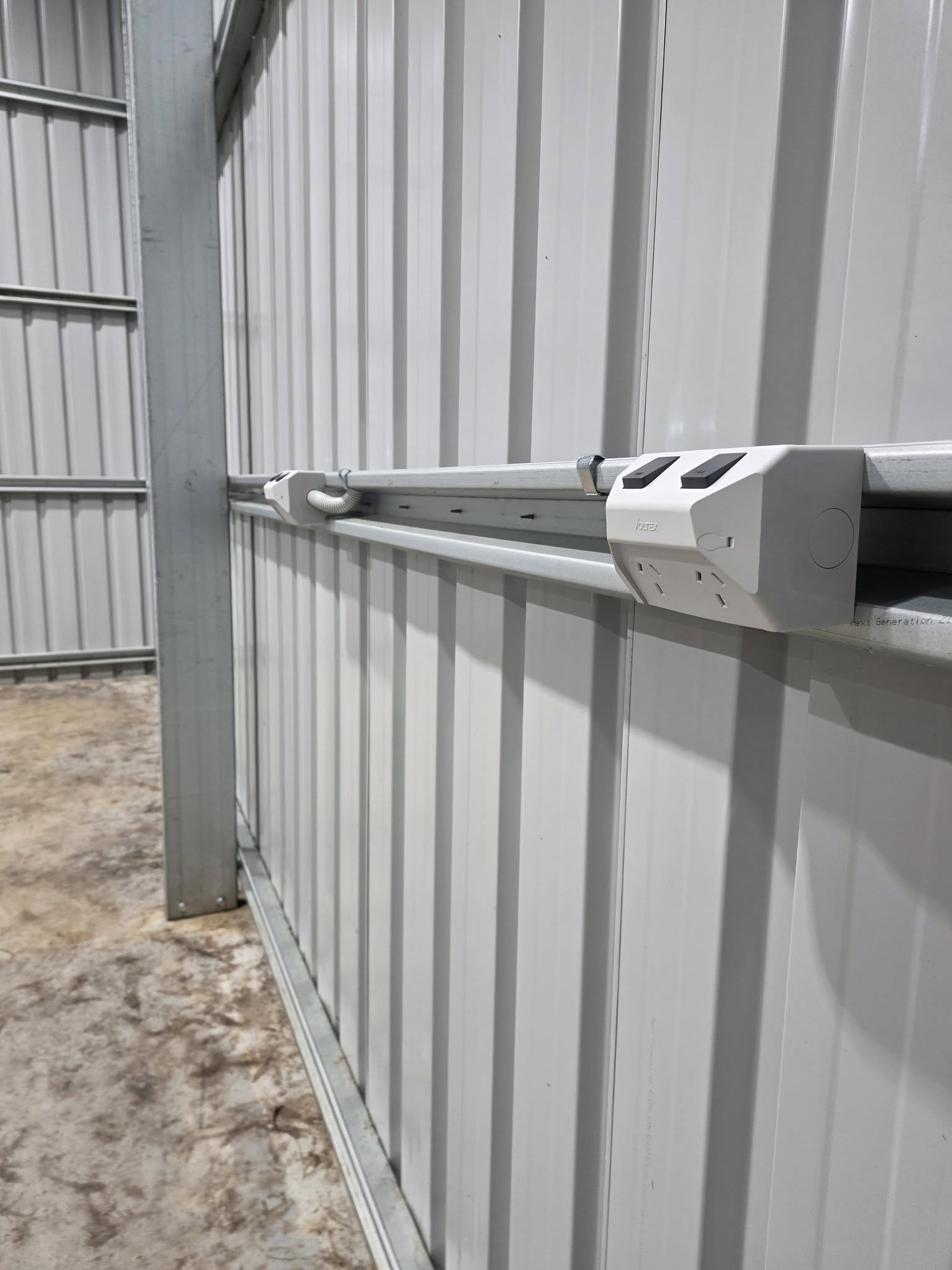

• Ample power points — Install more power points and switches than you anticipate needing. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every bench and outlets placed conveniently near key machinery locations.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. It is significantly easier to run cables during the initial fit-out than after the walls are finished.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, particularly in rural areas that lack sufficient street lighting.
• EV or equipment charging — If you use electric equipment (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

Assess the Costs of Your Workshop Electrical Setup

Cost estimates will differ based on the workshop’s size, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or upgrades from Essential Energy will increase overall costs. We provide transparent quotes tailored to your specific workshop and equipment needs—there are no hidden fees involved.

Important Reminder: All Electrical Work Must Be Completed by Licensed Professionals

This is a vital point to stress. In New South Wales, all electrical wiring work must be conducted by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to guarantee safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to substantial fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it is a risk that could have serious repercussions.

Answers to Your Most Common Questions

Can I Run My Welder from a Standard Power Point?

Small stick welders (up to around 140A output) can indeed be used with a standard 10A or 15A power point. any larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or potentially cause the wiring to overheat if the breaker is faulty. If you are welding frequently, it is essential to install a dedicated 32A circuit for safety and efficiency.

How Many Circuits Are Generally Needed in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop typically necessitates a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spares for future additions. We customise the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Necessary for My Home Workshop?

Not necessarily. Most home workshops operate adequately on single-phase power with dedicated circuits. Three-phase power is only necessary if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Check out our comprehensive guide on Do I Need Three-Phase Power on My Property? to see if it aligns with your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. if it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will assess this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can usually be completed within 1 to 2 days. A comprehensive fit-out encompassing multiple heavy circuits, three-phase power, and extensive lighting typically takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you informed throughout the process.
