Concrete Thickness for Car Hoists: Essential Insights

When considering the installation of a hoist in your workshop, it is crucial to evaluate both the condition and specifications of your floor alongside your choice of hoist. A car hoist exerts considerable point loads through a limited number of bolts, making it vital that the underlying concrete slab can effectively bear this weight. This is a common concern for workshops in Sydney, Melbourne, Brisbane, and across Australia, so here’s a clear answer to this significant question.

There is no one-size-fits-all answer regarding slab thickness for hoist installations. The appropriate slab thickness depends on the specific type of hoist, its rated load capacity, and the installation guidelines provided by the manufacturer. It is essential for your installer, and in ambiguous situations, a structural engineer, to evaluate your floor’s suitability prior to any installation.

Which Factors Impact the Floor Requirements for Your Hoist?

There is no single measurement that universally applies, as each hoist imposes unique loads on the floor. For instance, a two-post hoist transfers the total weight of the vehicle through two columns, concentrating the load at the baseplate bolts. Conversely, a four-post hoist spreads the weight over four posts and a larger footprint. A scissor lift, operating closer to the ground, affects the slab differently. The specifications required depend on the specific type of hoist rather than a generic measurement.

Three main factors dictate the requirements for your slab.

Understanding Your Hoist Type and Its Load Capacity

A standard two-post hoist for cars and light commercial vehicles has distinct load requirements when compared to a heavy-duty four-post hoist intended for larger 4WDs and vans. Hoists with higher capacities exert greater loads at their anchor points, which often necessitates a thicker and more robust slab. You can find capacity details on the hoist’s data plate and in the accompanying manual, providing the foundation for your floor specifications.

Following the Manufacturer’s Installation Guidelines

All reputable hoist manufacturers include an installation manual that specifies minimum concrete thickness, required concrete strength, appropriate anchor types, and necessary distances from any joints or slab edges. This manual is essential for a successful installation. If the slab does not meet these standards, the hoist installation should be postponed until compliance is achieved.

Evaluating the Condition and Composition of Your Existing Slab

Not all slabs of the same thickness provide equal support. Factors such as reinforcement quality, curing methods, proximity to control joints or cracks, and the sub-surface conditions all influence the slab’s ability to support a hoist. An older slab that appears intact can still pose significant risks. It is wise to have a qualified professional assess the slab instead of relying solely on superficial observations.

What Is the Recommended Thickness for My Hoist Installation?

While many individuals seek a definitive number for slab thickness, it is critical that this specification comes from your hoist’s installation manual rather than a generic article. The manual outlines the minimum slab thickness, concrete strength, and often specifies a minimum curing period before anchors can be installed. Heavier hoists, specific anchoring systems, or questionable slabs may require stricter standards.

This approach is not evasive; it prioritises safety. The reliability of a hoist is directly tied to the integrity of the surface it is anchored to. Specifications must be derived from the manufacturer of your particular model, and consulting a structural engineer is advisable if the floor is older, uncertain, or marginal. Share details about the hoist you are considering and the condition of your floor, and we will assist you in determining the appropriate specifications.

Indicators That Your Slab May Not Be Sufficient

While a visual inspection alone cannot provide a complete assessment of a slab, certain indicators should be communicated to your installer before they provide a quote. If any of these conditions apply, mention them early to ensure a proper evaluation and avoid complications on installation day.

Is Your Slab Thin, Aged, or Uncertain?

If you are in a leased space and cannot ascertain the thickness or construction details of the floor, clarifying this question is critical. Older industrial slabs can vary significantly in quality. If documentation is lacking, conducting a core test or having an engineer assess the slab can offer valuable insights.

Are Cracks, Movement, or Hollow Sounds Present?

Visible cracks near the intended anchor points, areas that have lifted or settled, or a hollow sound when tapping the surface can indicate underlying issues. While these signs do not necessarily disqualify a slab from supporting a hoist, they warrant further investigation before any anchoring occurs.

Will the Hoist Be Installed Near a Joint or Edge?

Anchors too close to control joints, expansion joints, or slab edges can result in inadequate anchoring. Hoist manuals specify minimum edge distances to mitigate this risk. The placement of the hoist on the floor is as crucial as the slab’s thickness.

Who Confirms the Safety of Your Floor?

This consideration is vital for your safety. The suitability of your slab for a hoist is confirmed by your installer, who will adhere to the specifications outlined by the hoist manufacturer. If there is any uncertainty, a structural engineer should be consulted. This decision should not rely on informal sources like YouTube videos or casual recommendations, as the consequences of miscalculation could include a vehicle falling.

For standard installations on known, compliant slabs, the installer following the manual is generally sufficient. If the floor is old, undocumented, marginal, or if the hoist has a high capacity, engaging an engineer for assessment is prudent. A core sample can confirm the actual thickness and strength, while an engineer can determine if the slab can support the load or if modifications, such as a thickened pad or a new pour, are necessary.

At MetroBooths, we assist workshops in selecting the right hoist tailored to their specific site requirements instead of merely offering a product. Share information about your floor and the weight you intend to lift, and we will guide you to the appropriate hoist and identify any necessary checks beforehand.

Choosing the Most Suitable Hoist for Your Existing Floor

Often, the most practical approach is to select a hoist that aligns with your existing slab rather than incurring additional costs for concrete repouring. A diverse range of hoist types is available, and the optimal choice depends on your floor’s characteristics, ceiling height, bay configuration, and the types of vehicles you work on.

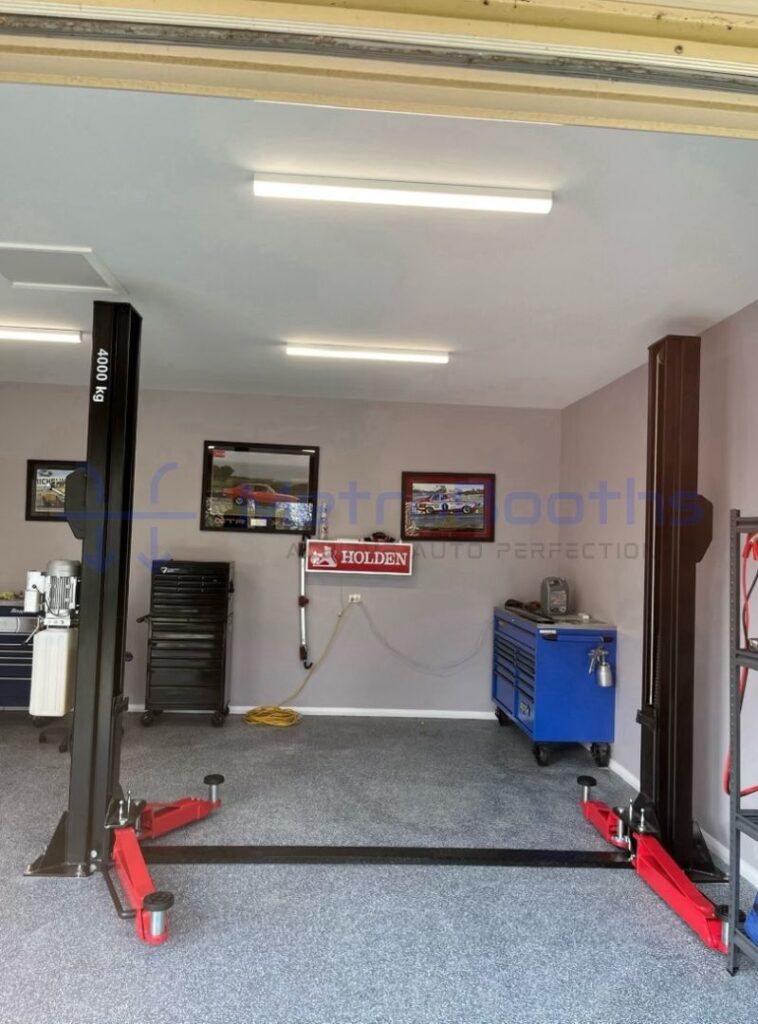

A two-post hoist is the industry standard for cars and light commercial vehicles, and it is the type most frequently associated with slab inquiries due to its unique loading characteristics. If your floor or layout can accommodate a wider footprint, a four-post hoist distributes loads differently and is often preferred for storage or heavier vehicles. If space or slab depth is limited, consider a scissor lift or low-rise option.

Explore our extensive range of hoists, then consult with us about your workshop’s specifics. We offer supply and installation services throughout Australia and prefer to address any flooring concerns prior to any drilling.

Common Questions About Hoist Installation

What Is the Minimum Concrete Thickness for a Two-Post Hoist?

There is no universal thickness for every two-post hoist, as requirements vary based on capacity and anchor type. The necessary thickness is detailed in your specific hoist’s installation manual, which outlines the minimum slab thickness and concrete strength for that model. For older or undocumented slabs, consulting a structural engineer or performing a core test will provide confirmation. Share your hoist details with us, and we will guide you to the correct specifications.

Is It Possible to Install a Car Hoist on an Existing Workshop Slab?

Yes, it is often feasible, provided the existing slab meets the hoist manufacturer’s minimum thickness, strength, and edge-distance requirements. Many workshops successfully install hoists on existing floors. It is crucial to ensure that the slab adheres to the specifications rather than making assumptions. If the floor is undocumented, cracked, or questionable, it should be evaluated before installation. A core sample and an engineer’s assessment can provide the necessary clarity.

What Concrete Strength Is Required for a Car Hoist?

Most car hoists stipulate a minimum concrete compressive strength in their installation manuals, with higher-capacity hoists potentially requiring more stringent specifications. Concrete strength is influenced not only by the mix used but also by how the slab was cured and reinforced. This is why a newly poured slab typically requires adequate time to cure before anchors are installed. Always refer to the specifications in your hoist’s manual and confirm with your installer or engineer based on your specific site conditions.

Do I Need an Engineer to Assess My Floor Before Hoist Installation?

Not necessarily, but it may be required in specific circumstances. For a straightforward installation on a known, compliant slab, following the manufacturer’s guidelines with your installer is generally adequate. You should engage a structural engineer if the floor is old, undocumented, cracked, or marginal, or if you are installing a high-capacity hoist. An engineer can verify thickness and strength through a core test and advise whether the slab is suitable or needs remediation. When in doubt, seeking an assessment is a wise precaution. It is more cost-effective than addressing the consequences of an inadequate installation.

What If My Concrete Floor Is Not Thick Enough for a Hoist?

If your slab does not meet the hoist’s specifications, installation should not take place until the floor is brought up to the required standard. Anchoring into an insufficient slab poses significant risks, including the potential for anchor failure under load, which could result in a vehicle falling. Common solutions include pouring a thickened concrete pad in the hoist’s footprint or adding a new section of slab according to the manufacturer’s specifications. An engineer can recommend the most suitable option for your circumstances.

Ensure Floor Safety Prior to Installation

The safety of a hoist is fundamentally connected to the integrity of the slab it is anchored to. Confirm that the floor meets all specifications, follow the manufacturer’s guidelines, and consult an engineer whenever uncertainty arises. By adhering to these steps, the installation process can be smooth and successful.

Contact MetroBooths about your workshop floor and lifting needs, and we will assist in specifying the right hoist for your site. Call us at 0433 426 291 or email sales@metrobooths.com.au for prompt assistance.
